1080 Sprint and 1080 Quantum System Updates

Update to version: 12.3.0

L/R Analysis Tool within Web App

Software Update Notification for Version 6.3.0
Published January 23, 2024

In this update, we have made these key improvements:

  1. Added ability within web app to automatically provide left and right movement analysis specific to running type exercise
  2. Added ability to change default “Quick” button exercise using the 1080 Sprint

Notice: The left/right analysis is a tool to observe data specific to the 1080 Sprint in running type exercises. It is not a medical diagnostic tool. While the tool is available for all linear type exercises, its analysis algorithm has only been tested with a running athlete. Use the results with caution for other types of exercise movements.

1.  Added ability within web app to automatically provide left and right movement analysis specific to running type exercise

– Select a running type exercise and a L/R ANALYSIS button is now active (See Figure 1).
– Once selected, a pop-up (Figure 2) will allow user to select starting side limb. For example, starting limb is the lead leg in a two-point standing stance.  This allows identification of left and right differences per movement length (step), stride length and frequency. Peak force is identified for each movement length and can be further evaluated.
-This tool assumes for each movement that the bottom (valley) of each connected curve is foot contact and greatest peak (mountain top) is toe off. Movement for each step terminates at the bottom of each valley.  This is considered a movement length or step.
Figure 3 shows starting side identified as the left and with the last 6 steps identified. User has the option to select all steps, last 10, or last 6. Statistics of peak force asymmetry or differences are shown in the far-right box. Use the zoom range option at the top of the pop-up to identify custom step statistics.


Figure 1: Data synced to the web app from the 1080 Sprint is available for deeper analysis using the L/R Analysis tool button.

Figure 2: Left/Right Analysis tool with new metrics of movement length (step length), stride length and frequency.


Figure 3: Last 6 steps of the run exercise are selected. Use the zoom tool to customize this view.


Figure 4: Movement details including comparison of right and left peak force differences for selected steps. This example shows a 6% difference in peak force over the last 6 steps of a run against 1 kg/NFW settings.

Reminder: In the last web app update, 1080 added ability to track linear sprint exercises by indicating lead leg being left or right

  • This is configured on a per-exercise level and will cause a “Left/Right Side” selector to appear in the “New Run” dialog. By default, exercises do not have this enabled.
  • Users must create a new linear motion exercise or update an existing private linear type exercise to enable this feature and click the option to indicate right or left lead leg to assist with tracking velocity, force, and power peaks and valleys.
  • If default quick start running exercise is selected, data in webapp will need user to select left or right as the lead leg.


Figure 5: Create a new linear type exercise (example: 30 yd sprint) and choose to allow tracking of sides.


Figure 6: Choose Left or Right using the toggle button. Left toggle indicates the lead leg of a run is the left lower extremity.


Figure 7: Left side or forward left extremity is indicated in the results data and eliminates the need to add a comment of lead leg for future reference.

2. Added ability to change default “Quick” button exercise using the 1080 Sprint to any public or private linear exercise

  • Default “Quick” button opens the traditional “running” exercise using the 1080 Sprint and indicated by a “star” symbol.
  • Choose any linear type exercise to reset default “Quick” button by highlighting the exercise and selecting “Make Default” button in the upper right corner. The star symbol will transfer to selected exercise.
  • Users can view the current “Quick” exercise by viewing instructor settings pop-up under the settings menu. Users can clear any changes to “Quick” and reset back to “running.”

Update to version: 6.2.6.0 and 6.2.7.0

Top Speed

Published Nov 28, 2023

In this software update, we have added a new speed tracking feature: Top Speed

This release introduces the new “Top Speed” concept:

  1. Top Speed represents the fastest speed attained throughout the entire run/skate/swim movement filtering the peak and valleys of the velocity curve.
  • Calculated at the time of running and stored separate from the split setting.
  • 5m (or 5 yd) splits are not used to measure a peak or average speed, instead using advanced signal processing to calculate the current speed at any given time of the rep.
  • Measures top speed regardless of how long the run/skate/swim movement is performed.
  • User can modify or remove the split of a run without affecting the top speed value.
  • Improves the ability to compare runs using a speed metric.

The data used to calculate top speed can be visually shown in the app: Plot the run you want to look at and make sure you are plotting Speed as Y value. Then open View Settings and enable “Smooth Speed Curve”. A bold dot displays top speed along the “Smooth Speed Curve.”

Note: Best 5m (or 5yd) splits are still calculated, but only on runs longer than 20m. They are shown in the UI as ‘Split speed.’ Peak speed is removed from the split calculation.

2. View position and time when the top speed of a linear run is reached (distance from the start of the run)

Other improvements and fixes:
3. It’s now possible to connect/disconnect machines to bluetooth connection after logging in. Machine connect/disconnect is available in a menu in the title bar (next to the sync status icon)
4. Sync status icon updated to minimize the yellow “you have unsynced changes” all the time.

Update to version: 1.0.0.0

New Web App Launches

Published November 1, 2023

Video demonstration

In this update, we have made these key improvements:
1. Quickly search for client training sessions

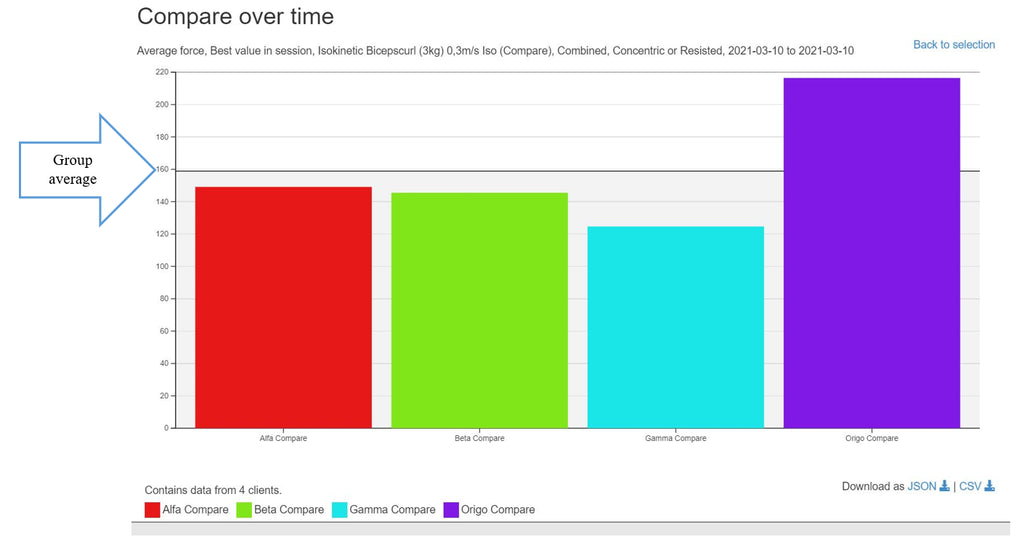

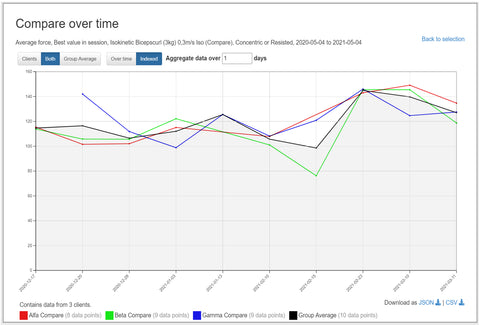

2. Compare training data from different clients using the new “Rep Comparison Tool.”
3. Export custom splits from linear type exercises (sprinting, swimming, skating) or reps by exercise type for a single client or several at once.
4. Save time importing client rosters with downloadable excel worksheet.

ACCESS THE NEW WEB APP: 1080 Motion Web App or webapp2.1080motion.com

THIS APP IS DESIGNED FOR DESKTOP/LAPTOP VIEWING. Use of phone will have limited functionality at this time.

Update to version: 6.2.0.0

 Bypass traditional Windows desktop Bluetooth connection point

Published September 26, 2023

In this update, we have made these key improvements:

  1. Bypass traditional Windows desktop Bluetooth connection point
  2. Improved capabilities for Change of Direction exercises
  3. New “Set Resistance” button when training to simplify setting of loads and speed limits
  4. Add option to display force and power as a function of body weight
  5. Added help buttons for easier navigation of user interface

1.  Bypass traditional Windows desktop Bluetooth connection point

  • Reworked the machine connection mechanism so that it is no longer necessary to do Connect As… → Access Point before starting the 1080 software:
    1. Open 1080 Motion user interface application before connecting with the Bluetooth desktop shortcut.
    2. The new “Connect Machine” button is located in the upper right corner. Press on the button and pop-up connection options appear with blue dot indicating a machine is turned on and within range. If gray circle appears, confirm unit is turned on and in range of Bluetooth.
    3. Choose the correct machine to connect with. Please note all machines turned on and with previous Bluetooth pairing will appear.
    4. User will recognize successful connection when the control bar for load, mode and speed appears at the bottom of the screen.
    • Note: The traditional option to connect via Windows desktop shortcut (right click → “Connect As…”) is still supported as a fall-back option
    • Note: It’s now possible to reconnect to the machine without having to restart the application

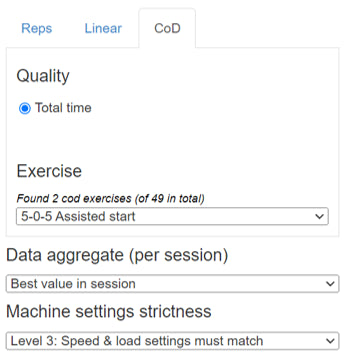

2. Improved capabilities for Change of Direction exercises

  • Support runs with any number of turns, allowing all types of shuttle runs (multiple turns) to be performed.
  • Improved New Run dialog showing exercise instructions and allowing temporarily overriding settings for number of turns, distance, end position etc.
  • Support having the CoD finish line at a different place than the start position
  • Allows automatic start direction (Assisted or Resisted)
  • To access, select “Modify Settings” button

3. New “Set Resistance” button when training to simplify setting of loads and speed limits

  • From previous set: Retrieves speed limitsloads and mode from the most recently performed set for this client and exercise type and applies them on the machine. This is especially useful when switching between clients during a session.
  • From body weight: Set the Concentric and Eccentric loads as a percentage of the current client’s body weight. The percentage value is remembered, making it easy to use the same percentage for all clients during a session.
  • From Exercise: A coach can configure default loads and speed limits in the exercise type. These will then be accessible from the training session.

Figure C: Options to set resistance with less clicks and use historical data found in the single reps training view.


Figure D: The machine will not change load or speed limits until confirmed by the user.


Figure E: Users can create and modify their exercises to specify load and speed to improve effectiveness of user setup.

4. Add option to display force and power as a function of body weight

  • Add option to display force and power as a function of body weight (i.e. W/kg or N/kg) to make it easier to compare performance between clients or against historical sets from the same client.



5. Added help buttons for easier navigation of user interface

  • Certain dialogs and screens have a “Help” button which will display more details explaining how to use that particular function of the application.
  • More content will be added in upcoming releases

Update to version: 6.1.0.0

Customize display with yards, km/h, and mph

Published July 3, 2023

In this update, we have made these key improvements:

  1. Streamlined options for measuring linear movements (E.g., running, skating, swimming)
  2. Customize metric or imperial units when displaying linear and CoD movements (E.g., yards instead of meters, mph or km/h instead of m/s)
  3. Functionality to identify false reps in single rep exercise display

1. Streamlined options for measuring linear movements (E.g., running, skating, swimming)
Users have three options when measuring a linear movement on the 1080 Sprint. Select from Distance, Auto, and Custom methods in the new pop-up dialog box.

  • Distance: Previously labeled “Auto Distance.”  Select a defined distance to measure. (E.g., 15 meters or 15 yards). Measuring in yards is now an option if “Instructor settings” are modified to imperial. Please take a look at section 2 below to learn more.
  • Auto: Previously labeled ” Full Auto.” No distance is defined prior to the exercise. The machine records data beginning with the trigger of 0.2 m/s and ends when the athlete completes the movement indicated by the line slowing down below 0.2 m/s. This method is useful for recording consecutive jumps and acceleration to deceleration movements when the expected distance to measure is unknown.
  • Custom: Allows users that desire customized control of the start and stop conditions of the linear movement. Distance, time, and manual start/stop options are available.

Users no longer choose resisted or assisted movement. In this update, the machine recognizes the direction of movement based on the initial movement of the line from a set position in either resisted (away from the machine) or assisted (towards machine) movements.  All resisted exercises are displayed as a solid line, and assisted exercises are displayed as a dashed line.

Lastly, an updated tape measure is available through the dialog to assist in setting a course using meters or yards.

2. Customize metric or imperial units when displaying linear and CoD movements (E.g., yards instead of meters, mph or km/h instead of m/s)

This update allows the user to visualize data as default metric (m and m/s) settings or change to (yds, mph, and km/h) settings for linear and change of direction movements. Once settings are saved and synced, other devices using the account will have the newly updated display metrics. The control bar at the bottom of the screen will continue to show load in kilograms (kg) and speed limits with meters per second (m/s). Single repetitions continue to display with metric identifiers.

Follow these brief instructions to change the instructor settings from default to imperial.

  1. Click on the gear icon  in the upper right
  2. Select from the list “Instructor Settings”
  3. Choose metric or imperial “Speed and Distance” settings from the drop-down menus
  4. Next, choose how body weight and height are displayed

Select OK to save settings

The example below of horizontal force velocity variables and traditional speed and distance measurements are displayed with imperial metrics (yards and mph). Users can also use the “Edit Split” feature using meters or yards within the user control application.

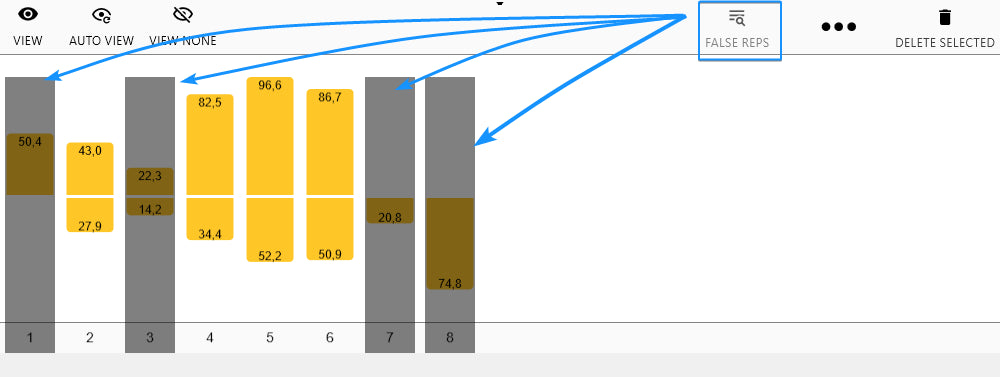

3.  Functionality to identify false reps in single rep exercise display

False reps may occur when performing individual reps in a set (single, syncro, syncro smith type exercises). They are typically at the beginning and end of a training set, but can also occur at other times.

False reps are defined as nonmeaningful data that lack one or more motions.

  • A rep that only has the concentric phase when both concentric and eccentric are expected is a false rep
    • For example, a syncro rep has two concentric, but only one eccentric motion.
  • A rep whose range of motion or speed deviates greatly from the set’s other reps.
    • The exact values are subject to change as we fine-tune this over time.

To use this feature, touch the “False Reps” icon to speed up data cleaning after repetitions are displayed. Reps that have been identified as “False” are highlighted in a gray color, as indicated in the image below with reps 1,3,7,8. Next, users should scan the highlighted repetitions to ensure all highlighted reps should be deleted. Once confirmed, touch the “Delete Selected” icon to clean the data. Just so you know, once deleted, the data can not be restored.

If you have difficulty or if the unsynced account is not accessible by an instructor or admin, contact customer support.

Email: [email protected]

Update to version: 6.0.4.0

Quick Start feature for 1080 Sprint and Quantum Syncro/Syncro Smith

Published March 28, 2023

In this update, we have made these improvements:

  1. Quick Start feature added to the 1080 Sprint for linear movements and Quantum Syncro/Syncro Smith movements
  2. More effortless synchronization of Quantum towers when entering Syncro mode
  3. Bug fixes, visual display, and stability improvements



  1. Quick Start feature added to the 1080 Sprint for linear movements and Quantum Syncro/Syncro Smith movements

1080 Sprint users now have a Quick Start button on the login display. Skip the log in option and choose Quick Start to quickly view data of linear type movements (i.e. running, skating, swimming).

1080 Quantum Syncro/Syncro Smith users now have the option to combine towers in Quick Start mode or use the Quantum towers separately. Quick Start automatically detects when the machine enters synchro mode and switches to show data from both devices.

Quick Start feature does not save or store any data to the local drive or cloud. If the data needs to be kept, please log in to the account and select an active client using the machine to collect data to be stored.

  1. More effortless synchronization of Quantum towers when entering Syncro mode

This update eliminates the need to manually match speed limits, loads, gear, and mode settings when entering Syncro mode. Now, at the request to enter Syncro mode, the secondary machine (passive) tablet display requests confirmation that the tower is ready to match the settings of the primary (active) machine display. Once the user confirms yes, the synchronization is complete and ready for use. Please note the software will sync gear settings to the primary tower, however, the physical task of adding or removing a pulley to match the displayed gear (First or Second) continues to be necessary for load and speeds to match display settings.

  1. Bug fixes, visual display, and stability improvements

“Combined Bars” is now the default mode for new sets in synchro exercises.

Comments are easier to edit for linear and CoD exercises.

Bugfixes and improvements around the editing of users and groups are complete.

_______________________________________________________________________________

Have you updated to Version 6?

The above features will be available once the Version 6 installation is complete. If you are running software version 5, please follow these steps to initiate the installation of 6.0.4.0. Please note that your software will only automatically update once all local data is synchronized to the cloud.

Troubleshooting Strategies

  1. Log into 1080 Motion account, and check the sync status icon is a white check mark. If so, close out of the 1080 Motion software application and reopen the app to initiate the software download and installation of Version 6.
  2. If the sync status is not a checkmark, please check to make sure the device is connected to a reliable internet connection. Resume synchronization and once synced indicated by the checkmark, close out of 1080 Motion software application and reopen the app to initiate the software download and installation of Version 6.
  3. If multiple 1080 user accounts utilize the device, local data from each account needs synced to allow the software update. To confirm if this issue prevents Version 6 software download, the sync log dialog will list all instructors with local data that need to be uploaded before the computer can upgrade the application to Version 6.



If this is the case, please have the instructor or admin login to each identified account that needs local data synced to the cloud. After logging into the account with an established internet connection, the sync should proceed automatically. Following a completed sync process indicated by a checkmark (upper right of screen), please close the 1080 application. Then, reopen the 1080 application to begin the automatic software upgrade to Version 6.

If you continue to have difficulty or if the unsynced account is not accessible by an instructor or admin, contact customer support.

Email: [email protected]

Update to version: 6.0.0.0

Version 6 Software Update

Published march 13, 2023

Following the Version 6 release, the 1080 Motion application will automatically update after opening the application. A successful update requires an established internet connection AND all stored local data synchronized to the cloud.  Be aware the application will only upgrade to Version 6 if there are “no unsynchronized changes” in the local database. Version 6 uses an updated and new database format that will not read the old database. (Updating Issues? Read below how to troubleshoot or email [email protected] for assistance)

In this update, we have upgraded to Version 6 to improve the user experience.

  1. Improved cloud synchronization speed
  2. New default eccentric/assisted speed limit at start-up and following calibration
  3. NFW (No Flying Weight) is now default mode at start-up
  4. Improved display of data via line charts

1. Improved cloud synchronization speed
Updated cloud synchronization solution results in faster synchronization of training data with the cloud. Both the client and the server have been upgraded to use the latest versions of the .NET platform and supporting libraries. This change allows future advancement of the software.

2. New default eccentric/assisted speed limit at start-up and the following calibration
Eccentric/assisted speed is now set by default to 2 m/s. Upon startup of the machine, the eccentric/ speed will return to 2 m/s instead of 0.3 m/s eliminating clicks by the user.

After exiting calibration mode, the eccentric/assisted speed limit is restored to its previous value. For example, eccentric/assisted speed limit was set by the user to 4 m/s. Then calibration mode was initiated by setting the resisted/concentric load to “P” (Parking Brake 0 kg).  After calibrating the line, the speed limit will return to the 4 m/s speed limit eliminating clicks by the user to reset the speed limit from the previous default of 0.3 m/s.

Upon exiting calibration mode and the user did not reset the calibration point, the eccentric/assisted speed limit will reset to 2 m/s instead of leaving it at 0.3 m/s.

3. NFW (No Flying Weight) is now default mode at start-up

Eccentric Start mode is “NFW” (no flying weight) instead of “Normal” staying consistent with the majority of users’ preferred training mode for resistance exercises.

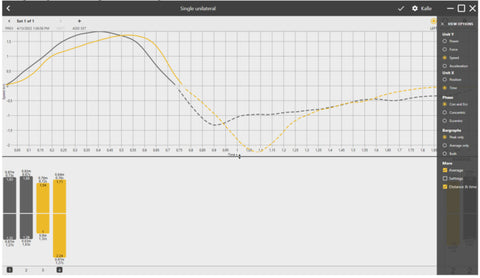

4. Improved display of data via line charts
Line charts originate from position 0 instead of a value relative to the calibration. When viewing reps with both concentric and eccentric phase, the first phase will start from 0, and the second follow where the first phase ends.

Assisted cyclical runs will match the display of the resisted run and show the assisted dashed line moving left to right, eliminating negative speed and distance display.


Eccentric (assisted) movements display with dashed lines. This includes assisted change of direction and single rep exercises measuring assisted/eccentric speed, force, and power. Resisted cyclical runs or movements will continue to display as a solid line.

Difficulty upgrading to the new software Version 6?

1. Check the sync status icon after logging into the software. The sync status icon shows a checkmark if the local database is in sync. Click the checkmark to view the sync log dialog, which has additional details.

2. The sync status icon only shows the sync status for the currently logged-in instructor. If the tablet/computer has been used by another instructor account, they may have unsynchronized data saved on the encrypted local hard drive. The sync log dialog will list all instructors who have local data that need to be uploaded before the computer can upgrade the application to Version 6.

3. If this is the case, please have the instructor or admin login to the identified account that needs local data synced to the cloud. After logging into the account and with an established internet connection, the sync should proceed automatically.

4. Following a completed sync process indicated by a checkmark (upper right of screen), please log out and close the 1080 application. Then proceed to reopen the 1080 application to begin the automatic software upgrade to Version 6.

If you continue to have difficulty or if the unsynced account is not accessible by an instructor or admin, contact customer support. Email: [email protected]

Update to version: 5.7.16.0

Updated User Interface Features

Published January 10, 2023
1. Add “Auto View” toggle button to reps training view. When turned on, new reps will be added to the top-line chart automatically.
2. Add “View None” button to turn off the line chart display of all reps.
3. Add buttons to add all clients from a group to the active clients list.
4. Add button to clear the list of active clients.
5. Change the Add/Edit Client UI to put the mandatory fields at the top and the optional ones (age, gender, email) at the bottom.

Update to version: 5.7.15.0

Full Auto Measurement Option

This software update will be released 12/20/2022

Full Auto Measurement Option
1080 Sprint users have the ability to measure a run or consecutive jump(s) without selecting a predetermined measured distance. Measurement will start as soon as the client starts running (moves at 0.2 m/s) and stops when the client stops (slows to 0.2 m/s).  Use this option instead of Auto Distance when acceleration to deceleration measurements of a linear movement do not require a change of direction. This option also eliminates the need to pick a specific distance when performing horizontal jumps by auto stopping the measurement when speed of the tether drop below 0.2 m/s at the end of the last landing.

How it works:

Acceleration to Deceleration (Assisted)
In this example the athlete begins 20 meters away from the 1080 Sprint and is instructed to run as fast as possible and stop at a designated cone approximately 7 meters away. The coach has selected 5 kg load resisted/assisted and speed settings are set to 14 m/s each. NFW or Isotonic mode are appropriate for this test. The blue line represents the left limb as the lead leg and the red line represents a separate trial with the right limb as the lead.

1. Begin by selecting a linear exercise (i.e. Running) and click on New.
2. Select the Full Auto option.
3. Athlete is instructed to run 8 meters and stop.
4. Athlete gets set and coach touches the begin button.
5. When athlete stops at the designated point, the data is presented on the screen.


Acceleration to Deceleration (Resisted)
In this example the athlete begins 5 meters away from the 1080 Sprint and is instructed to run as fast as possible and stop at a designated cone approximately 8 meters away. The coach has selected 3 kg load resisted/assisted and speed settings are set to 14 m/s each. NFW or Isotonic mode are appropriate for this test.

1. Begin by selecting a linear exercise (i.e. Running) and click on New.
2. Select the Full Auto option.
3. Athlete is instructed to run 8 meters and stop.
4. Athlete gets set and coach touches the begin button.
5. When athlete stops at the designated point, the data is presented on the screen.

Consecutive Broad Jump (Resisted)
In this example the athlete begins 5 meters away from the 1080 Sprint and is instructed to perform three consecutive broad jumps. The coach has selected 5 kg load resisted/assisted and speed settings are set to 14 m/s each. NFW or Isotonic mode are appropriate for this test.

1. Begin by selecting a linear exercise (i.e. Running) and click on New.
2. Select the Full Auto option.
3. Athlete is instructed to jump three consecutive times in a row and stop and hold the landing for 1 second.
4. Athlete gets set and coach touches the begin button.
5. When athlete stops at the designated point, the data is presented on the screen.

Update to version: 5.7.14.0

Syncro Data Display Improvement

Published December 6, 2022
1. Fix problem where some of the training data at the end of a rep could get lost.
2. Increase spacing and sizing of some of the buttons in the training user interface to make them easier to hit.
3. Fix rendering problem where the motions from a Syncro or Syncro Smith rep would not line up correctly in the X/Y line plot.

Update to version: 5.7.13.0

Eccentric Boost Display Improvement

In this update, we have added features to improve the user experience.

Published November 22, 2022
1. Improve startup performance during cleanup of local database.
2. Fix problem with eccentric boost buttons staying in sync with the actual status of the boost in the machine.
3. Stability and performance improvements to software.

Update to version: 5.7.12.0

Improved Database Cleanup

This release contains an improved database cleanup function to help ensure the local database does not grow too large. When this file gets larger, the overall performance of the software goes down, with slow sync and intermittent lockups as a result.

Note: No data is being permanently lost by this. Any data deleted is still available in the 1080 servers and can be downloaded at any time there is internet connectivity. Data that has not yet been uploaded will not be touched.

1. At startup, all training data for inactive clients (a client that has not been accessed for 30 days or more) will be removed from the database.
2. An on-demand database optimizer is available from the Sync Status -> Troubleshooting window. This has a more aggressive cleanup routine that will remove training data also from clients used every day.
3. At login, if the software detects that the local database is too large, a warning is shown with a button to open the database optimizer.

Update to version: 5.7.11.1

Rest Timer and Stability Updates

In this update, we have added features to improve the user experience and stability of the software.

1. Add rest timer: A timer will start counting after a client does its last rep and display the elapsed time next to the client’s name in the sidebar
2. Fix  the number of decimals shown on the x/y axis on the line charts better match the actual range of values being shown
3. Fix sync issue that could happen when logging in with an instructor for the first time after clearing the local database.

Update to version: 5.7.9.0

Display a Left and Right Difference in Speed, Power, and Force in Average Rep Summary

In this update, we have added features to improve the user experience.

  • Ability to change an exercise name during a session
  • Display a Left and Right difference in speed, power, and force in average rep summary
  • Create a new exercise with improved option of a  minimum required distance
  • Active client display indicator
  • Application app remembers ID login

1. Ability to change an exercise name during a session after collecting data
The new feature allows an exercise name to be switched. For example, you create a new session with bicep curls, do a few reps, and then realize it should have been triceps extension. You can now correct this mistake.
How it works:
In this example we are going to switch the data to a different named exercise.
1. Click on the more options icon (three dots) and select Change Exercise. The example pictures show you can change a “Bilateral overhead anterior push unilateral leg” exercise to the correct exercise “Rotation tennis” by selecting a previously created exercise of the same type.
2. A pop-up window allows you to select the correct exercise “Rotation tennis” and will now change the name in the Session overview after clicking Ok.

2. Display a Left and Right difference in speed, power, and force in average rep summary
Users can now visualize the difference in peak and average measurements of a set of right and left recorded movements.
How it works:
1. Collect data of a single rep movement such as Rotation tennis (trunk rotation exercise)
2. Have repetitions labeled right and left to compare average.
3. Select View Options and select concentric phase
4. Select under More heading, Average and L/R % Diff option
5. Observe the difference within the column of the lower recorded average. For this example power is -37% on the left output compared to the right.

3. Create a new exercise with improved option of a  minimum required distance
User can now select at the time of creating a new exercise, the minimum required distance the tether must move during a single rep exercise before being displayed as a rep. Up to 30 cm/11.8 inches can be selected before an exercise rep is displayed.

4. Active athlete display indicator
Large client indicator now displays the active client prior to collecting data to help data collection processes. This is noted on the previous above photos as “Client 024.”
5. Application app remembers ID login
Option for client to select for easier login on a trusted device.

Update to version: 5.7.6.0

Ability to Move Sets and Reps & Tracking Historical Height and Weight Changes

In this update, we have added features to improve the user experience.

  • Move sets and individual reps between client training sessions
  • Inclusion of Body Weight and Height history for Horizontal Force Velocity calculation efficiency
  • When creating a new set from within a training session, all set parameters are now copied to the new set
  • Total (Effective) load is calculated for Smith exercises. It takes into account external load as well as the load from the two machines
  • Stability improvements around saving and uploading of data

Microsoft Surface Tablet Notice to Customers

Webapp Update

The following improvements are introduced in WebApp Comparison Report Tool

When logging in at webapp.1080motion.com, you can select a report called “Compare over time.” It will allow you to follow the progression of a particular exercise over time for one or several Clients or compare a group of Clients during one session (e.g., 30m sprints).

The first step is selecting a client or multiple clients to compare.  Selection always includes filtering Group, Client, Date, and the specific exercise type.

Three available types are listed when selecting the exercise: Reps, Linear, or CoD.

  1. Reps are unilateral or bilateral repetitions collected as single, Syncro and Syncro-Smith (e.g., Single-arm row or broad jump)
  2. Linear is a linear exercise type (e.g., Sprinting)
  3. CoD is a change of direction exercise type (e.g., Assisted 5-0-5)

A. REPS

  1. Quality – Select Peak or Average for either Force, Power or Speed
  2. Side – For bilateral exercises, select to show Left/Right side combined or L and R side separate
  3. Exercise – Select data from the specified exercise
  4. Phase – Select data from the concentric-resisted or eccentric-assisted phase
  5. Data aggregate (per session)
    • Best value in session (i.e. best rep)
    • Best set average in session NOTE: Before reporting, please remove or clean “bad or unwanted reps” in any sets
    • Average of set averages NOTE: Meaningful data requires total effort.  Again, please remove or clean “bad or unwanted reps” before running the report.
  6. Machine setting strictness
    • Level 1: Load and speed settings can differ
    • Level 2: Load must match but speed setting can differ
    • Level 3: Speed and load settings must match

IMPORTANT!

Machine settings strictness is essential – you want to compare apples to apples!  The software will look at the first session chosen by date, and those load and speed settings will then govern the following sessions/sets – they must have the same load and speed settings as the first to be included in the report.

Sometimes machine setting strictness is not important.  For example, speed settings don’t come into play when performing traditional power exercises where you want to follow progression power  (Watts) in the concentric phase.  In this case, it does not influence the report if different speeds are used during other exercise sessions.  Therefore, choosing level 2 (6b) is sufficient.

Furthermore, suppose you want to follow the progression of power and see the Client clearly improving over time; you may wish to increase loads between exercise sessions to maximize the power produced – then selecting Level 1 (6a) is your best choice in this instance.

B. LINEAR

  1. Quality – Fastest X meter split or fastest time
  2. Exercise –select data from the specified exercise
  3. Phase – select data from phases, concentric-resisted or eccentric-assisted

Data aggregation and machine settings strictness as for REPS (See section A. Reps).

C. CHANGE OF DIRECTION

  1. Quality – Only total time available, no phase times
  2. Exercise –select data from the specified exercise

Data aggregation and machine settings strictness as for REPS (See section A. Reps).

REPORTS

After selections are made, press ”Generate report.”

For a report of one specified date, a bar graph is generated

-Report of a specified date, a bar graph is generated.

-The black line represents the group average value.

-If you press Download as JSON, this exports the data in JSON format.

-If you press Download as CSV, this exports (all if more than one per Client) data entries for the selected settings and time interval in CSV format.

2 Report for comparison over time

For sessions with two or more entries, a line diagram is generated.

The black line represents the group average value.

Over time: The curve is shown over time.

Indexed: The curve is shown uniformly over the graph.  It uses the aggregate data duration.

Aggregate data over X days: The maximum number of days sessions can be shown in the graph and considered to have occurred at the same time/session.  (E.g., In a team setting, one group tests on Saturday and the other group tests on Sunday – choosing aggregate data over two days displays the data as if it happened on the same test day.

PRO TIPS

  1. Finding relevant historical data will likely be challenging unless you have done this “by hand” before. For example, the chosen settings and length recorded during a run need to be consistent for meaningful comparison.
  2. Moving forward with this tool, we advise users to select a few exercises with a strict settings protocol for load, speed, and execution. Strict setting protocols create meaningful reports to compare recorded data.
  3. Standardization procedures should be considered, and permanently delete unwanted or “bad” reps to compare the set average.
  4. Finally, we suggest users create specific exercises and name them to easily find them in the selection tool, as we did in the example above using “(Compare)” in the name.





Update to version: 5.6.1.0

Reporting of Horizontal Force Velocity Data of Linear Cyclical Movement (e.g., Running)

The following improvements are introduced in version 5.6.1.0:

1. Reporting of Horizontal Force Velocity Data of Linear Cyclical Movement (e.g., Running)

New feature displays individual force-velocity analysis (F/V) side by side of recorded speed, force, or power over time, based on one run at low resistance (1-3 kg). An added benefit compared to analysis based on multiple runs at different loads saves time and, we believe, a more accurate analysis eliminating heavy loading needed for the multiple load profiling. The validity of the method for straight running is well proven through documented research (see reference 1) and should work for skating as well.

How it works:

Perform a single resisted run at maximum effort with 1-3 kg load for a minimum distance of 30 m and ensure maximal speed is reached by the athlete. Calculation of the F/V assumes barometric pressure at sea level and temperature of 20 degrees centigrade. The effect of the light load from the 1080 Sprint is eliminated in the calculations of estimated max speed and splits.

To view F/V data, click on VIEW OPTIONS in the upper right corner. Select Time as Unit X, Speed as Unit Y, and  F/V analysis option (See orange boxes). Side-by-side images will appear.

Linear graph displayed with X-axis Force N/kg (F0) over Y-axis Speed m/s.
Parabola displayed with X-axis Power W/kg (Pmax) over Y-axis Speed m/s.

Variables of Interest displayed include:

Profiling Variable Definition Practical Interpretation & Use
F0 (N/kg) Theoretical maximal horizontal force production, extrapolated from the linear sprint F-V relationship. Maximal force output (per unit body mass) in the horizontal direction. Initial ballistic “push” of the athlete into the ground during sprint acceleration.
V0 (m/s) Theoretical maximal running velocity, extrapolated from the linear sprint F-V relationship. Sprint-running maximal velocity capability of the athlete should mechanical resistances be null. Ability to produce horizontal force at high velocities.
Pmax (W/kg) Maximal mechanical power output in the horizontal direction. Maximal power-output capability of the athlete in the horizontal direction (per unit body mass) during sprint acceleration.
RFmax (%) Maximal ratio of force (RF), computed as ratio of step-average horizontal component of the ground reaction force to the corresponding resultant force @ 0.3 seconds Theoretical maximal effectiveness of force application. Proportion of total force production that is directed in the forward direction of motion at start of sprint.
DRF (% per m/s) Rate of decrease in RF with increasing speed during sprint acceleration. Computed as the slope of the linear RF-V relationship. Describes the athlete’s capability to limit the inevitable decrease in mechanical effectiveness with increasing speed.
F=force; V=velocity; P=power; N=Newton; kg=kilogram; W=Watt; m=meter
Definitions within table modified based on a publication by Delaney (See reference 2)
Profiling Variable Definition Practical Interpretation & Use
Estimated top speed
Vtop
(Max Speed)
Maximal speed athlete can reach in an indoor environment with air resistance and no other external loading Key number to follow and base for setting overspeed assistance and effects

Parameters for horizontal FV profile calculations to be displayed:

  • Resisted loading of 1-3 kg (No greater loads will be valid input)
  • Movement distance recommended minimum of 30 meters
  • Use NFW or Isotonic mode

Race-like Performance Summary data can be displayed by clicking the icon .

Performance Summary displays an estimation of how an athlete would perform an indoor, unloaded run with air friction. Please note, distances over 30 meters could be too optimistic as fatigue is not represented in the calculations. Click on the Yards/Meters button to change the “Race Predictions” display.

Update client height and weight information for accurate results. The analysis will calculate force using the body weight and height as entered in the client profile including the chosen resistance of the 1080 Sprint. Note: If you decide to analyze data from a previous date, edit the height and weight of the client at the date of testing for accuracy of results.

Height and weight should be entered in the edit client profile before selecting the F/V analyze option. Select the edit button right of the client’s name.

References

  1. A simple method for measuring power, force, velocity properties, and mechanical effectiveness in sprint running (univ-reunion.fr)
  2. Sprint acceleration mechanical profiling for the NFL draft

2. Improved display of values presented in tables

Units are now displayed in gray to contrast with the numerical data displayed in black. Decimal presentation is now more consistent with data reporting.

Update to version: 5.6.0.9

Change in soft brake display

When calibrating the line or changing gears, the soft brake was enabled when resistance and assistance are set to 0 kg. The display will now show P indicating the soft parking brake is engaged instead of 0 kg when decreasing load below 0.1 kg. Since the machine only operates for testing or training with load, this update removes the option of trying to use the machine without load.

Update to version: 5.5.6.0

Software Download Link

Software update provides a new update mechanism for the 1080 Motion software.
Manual download of 1080 motion software is now available: https://download.1080motion.com

Update to version: 5.5.5.0

Software Update Notification

The following improvements are introduced in version 5.5.5.0

1) Reporting of variable load settings.

A bugfix where the settings used with variable load is now displayed correctly.

2) Resistance settings in session overview

In the data overview of exercises – the load settings used are now displayed

3) NFW as the default mode

When starting up the 1080 Software, our most used mode NFW, is now set as default mode.

4) Display changes to reps over time

When time is selected on the X-axis for single, syncro and syncro smith, exercises – the two consecutive phases are displayed chronologically. In the picture above con to ecc is displayed over time

Update to version: 5.4.0.0

Software Update Notification

The following improvements are introduced in version 5.4.0.0

1) “Auto distance” is the new default option for linear measurements such as sprints. It is recommended as measurements are highly consistent and repeatable, and will ensure you capture the athlete’s movement from the very start. Simply enter the distance you want to measure. The measurement is triggered when the athlete moves faster than 0.2 m/s and farther than 0.3 meters. To avoid triggering the test too early, ensure the athlete is still in the set position once you hit the “Begin” button. The previous default setting was “Manual”.

2) All linear sprint measurements are now displayed from the start position 0 meters. This applies to both old and new data. This is a change from previously when the start position was measured as the distance from the calibration point.

Assisted measurements will start from the 0-meter position and are displayed as a negative number when completed. The negative number is defined as the assisted direction for the machine.

3) New data structure in the overview for linear exercise display.

1) Total distance recorded

2) Selected split distance

3) Total time over total distance

4) Time over split distance

5) Average speed over split distance

6) Load used

7) Mode used

Update to version: 5.3.1.0

Optimized download of synchronized training data for improved performance

When logging in to your 1080 Motion user account, the software automatically downloads data (client profiles, groups, exercise library etc.) belonging to your instructor account. It caches this data on your tablet or PC local database. Earlier versions of the software have downloaded all the Sessions, Exercises, Sets and the corresponding training data.

The change introduced in this version is that Sessions will no longer be automatically downloaded when logging in. However, when navigating to a specific Set, that data will be cached (i.e., the next time you click on it, it will be available locally and does not need to be fetched from the cloud server). The benefit of this strategy is that much less data is downloaded, and the sync process will be faster leading to better performance overall. The one downside is that some old data that you have not viewed recently will not be available in the local cache. You will have to reconnect to the internet in order to view older data.

Remove data from local cache that has not been activated or viewed in the last 30 days.

To make the local database cache smaller and free up local hard drive space, the software will automatically remove all data from the local cache for all clients that have not been activated in the last 30 days. This of course only applies to data that is safely synced and uploaded to the server. Not yet synchronized data will never be removed. Activating a client means adding it to the “Active clients” list in the left side menu in the application.

And while we are at it – please remove clients no longer active!

When you remove a Client, all data linked to that Client will be deleted from the cloud database. Removing old unused data will therefore speed up your sync process, since the database searches will have less data to search. In fact, if you are located within the EU you are not allowed to store data on non-active Clients according to the GDPR-legislation. There is no clear directive on how long you should keep it. If you expect a Client to return, all the data from previous session may of course be valuable.

Update to version: 5.1.9.0

Vmax vs Peak speed – Edit Split

If you want to change the default 5 m split length or apply other rules, mark one of the runs in the set and push the Edit split button and the below will pop-up. To edit every measurement in a set to the same setting, check the “apply to all measurements in set” tickbox.

Update to version: 5.1.3.0

Variable load Low to High

With this update, we extend the variable load feature in the 1080 Sprint. Previously you could move from a higher initial load to a lower secondary load depending on speed. Now you can also move from a lower initial load to a higher secondary load also governed by speed.

Update to version: 5.0.6.0

Change of Direction (CoD)

Accurately measure continuous data, of both the acceleration and deceleration phases, in CoD exercises. Data presentation and analysis of acceleration and deceleration phase characteristics. Use predefined or create your own CoD exercises and tests, specific to your needs. Easy administration of CoD testing for individuals or groups.

Update to version: 3.9.9.5

Quickstart

With the new release we introduce a QUICK START option. This enables you to train without logging in while still getting biofeedback of each rep. Using QUICK START there is no need to login, select a Client, set up a Session and choose an Exercise.

Testimonials

We are building fast, fast athletes.

Eric Lichter

Co-founder of Plus 2 University

1080 Sprint tests power production.

RE_Building by Northwest Rehabilitation Associates – Salem, Oregon

I like the 1080 Syncro allows full control over concentric and eccentric load independently.

Tyler Kugler

Wasatch Sports Factory - Park City, Utah

Help athletes reach optimal performance sooner.

Eric Allen

Co-Founder of Pace Fitness Academy

Speed doesn’t happen by accident.

Tommy Christian

Founder of TCBoost

We are going to see how fast you can go.

Chris Korfist

Slow Guy Speed School, Chicago

CONTACT US

    By clicking submit below, you consent to allow 1080 Motion, Inc. to store and process the personal information submitted above to provide you the content requested. 1080 Motion, Inc. will only send meaningful content and communication regarding our services and products. We will not spam you or share contact information with any 3rd party.

    OUR CLIENTS

    University of Maryland
    Osaka-University
    Olympiastutspunkt-Stuttgart
    Northwestern-Univeristy
    Meijun-Gakuin-University
    josai-university
    INS-Quebec
    Henry-Ford-health-Systems
    koe
    Federation-University
    Coque-Luxemburg
    university-canterbury
    Canadian-Ice-Academy
    bears-bristol
    atletiekunie
    Athlete-Training-+-Health
    aston-villa
    aspire
    Los Angeles Kings
    Umea
    La Angels Baseball
    Medicrehab
    Human Performance
    Insep
    Portland Trail Blazers
    Riskidrottsforbundet
    Olympiatoppen
    Redhawks
    Loyola University Chicago
    IFK Kliniken
    Ben Shear Golf
    Carlisle Performance
    fac
    wasatch-sports-factory
    Victoria-University-Melbourne
    Viaamse-Atletiekliga
    University-of-Nebraska
    missourl
    university-of-minnesota
    University-of-Kansas
    University-of-Alabama
    Tottenham-Spurs
    TC-Boost
    Swiss-Athletics
    Sports-Institute-of-Hong-Kong
    Serbian-Institute-of-Sport-and-Sports-Medicine
    Proactive-Sports-Performance
    Polish-track-and-Field-Federation
    Plus-sports
    Xceleration
    Everton
    Q-P Prentiss Hockey Performance
    Agilo Kliniken
    Olympia
    BASPO
    University Of Florida
    HV71
    DLV
    University of lowa
    Lone Peak
    Malmo Idrottsakademi
    Aktivera
